Quick Details
Model Number: Forged Steel Valve
Power: Manual and electric
Port Size: 1/4" to 2"
Temperature: -196C~450C
Material: A105/F5/F11/F22/304/304L/316/316L/LF2
Connection Ends: Flanged
Class:Class150~2500
Operation: Hand wheel
Medium: Water,Oil,Gas,Steam

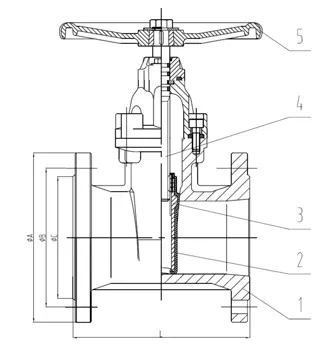

Name | 1-Body | 2-Seat | 3-Disc | 4-Stem | 5-Actuator |
Material | DI | EPDM | DI | 2Cr13 | Handwheel |
DN | NPS | L | ΦA | ΦB | ΦC |
50 | 2" | 150 | 165 | 125 | 102 |
65 | 2 1/2" | 170 | 185 | 145 | 122 |
80 | 3" | 180 | 200 | 160 | 138 |
100 | 4" | 190 | 220 | 180 | 158 |
125 | 5" | 200 | 250 | 210 | 188 |
150 | 6" | 210 | 285 | 240 | 212 |
200 | 8" | 230 | 340 | 295 | 268 |
250 | 10" | 250 | 405 | 355 | 320 |
300 | 12" | 270 | 460 | 410 | 378 |
350 | 14" | 290 | 520 | 470 | 438 |
400 | 16" | 310 | 580 | 525 | 490 |
450 | 18" | 330 | 640 | 585 | 550 |
500 | 20" | 350 | 715 | 650 | 610 |
600 | 24" | 390 | 840 | 770 | 725 |
700 | 28" | 430 | 910 | 840 | 795 |
800 | 32" | 470 | 1025 | 950 | 900 |
900 | 36" | 510 | 1125 | 1050 | 1000 |
1000 | 40" | 550 | 1255 | 1170 | 1115 |
1200 | 48" | 630 | 1485 | 1390 | 1330 |

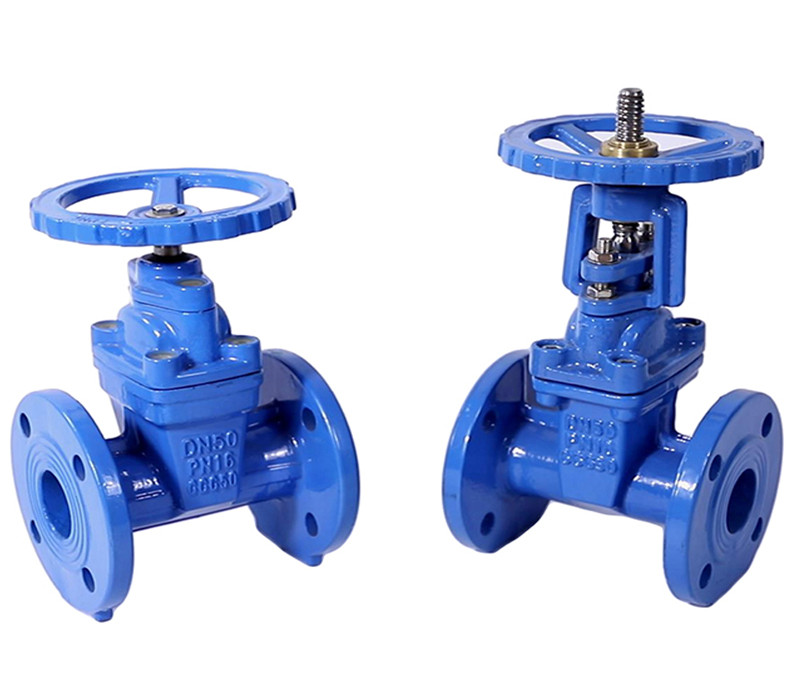

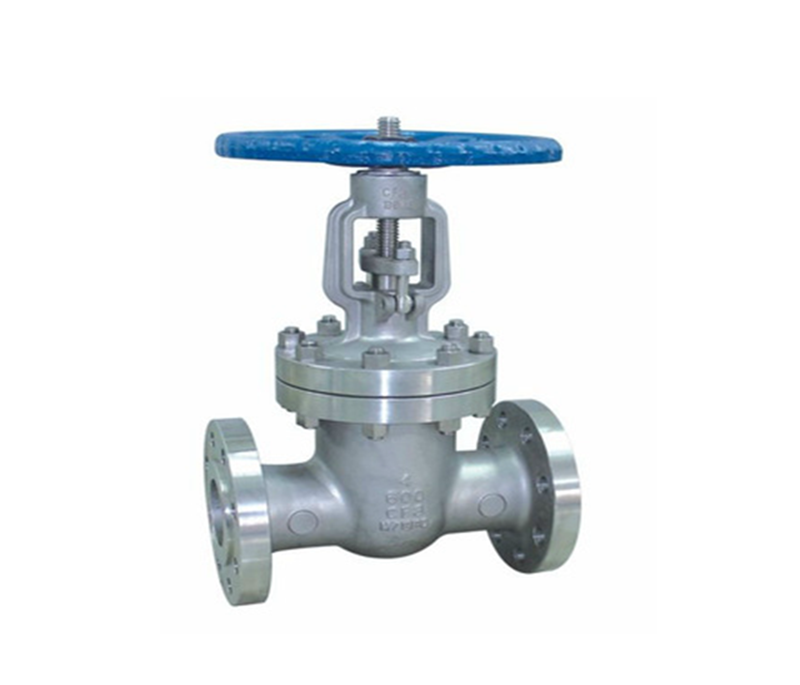

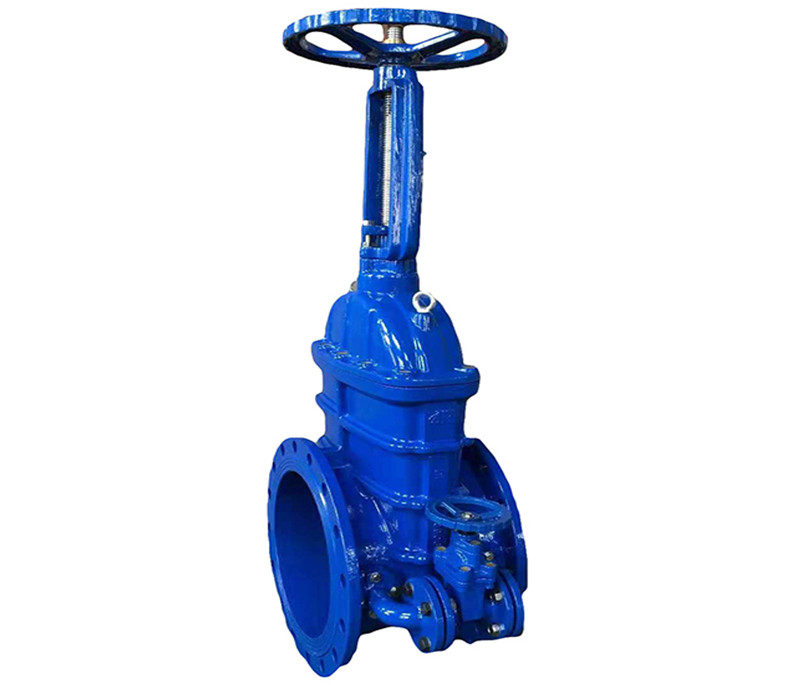

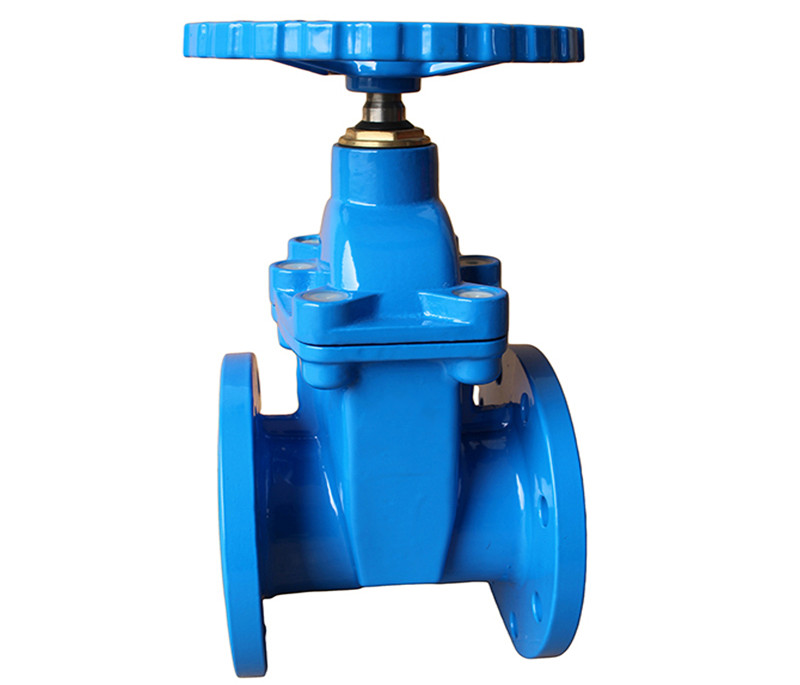

Name: Flanged Cast Iron Valve Steam Globe Gate Valve Water Ductile Cast Brass Iron Gate Valve
Model Number: Forged Steel Valve
Power: Manual and electric
Port Size: 1/4" to 2"
Temperature: -196C~450C
Material: A105/F5/F11/F22/304/304L/316/316L/LF2
Connection Ends: Flanged
Class: Class150~class2500
Operation: Hand wheel
Medium: Water,Oil,Gas,Steam and chemical liquid.

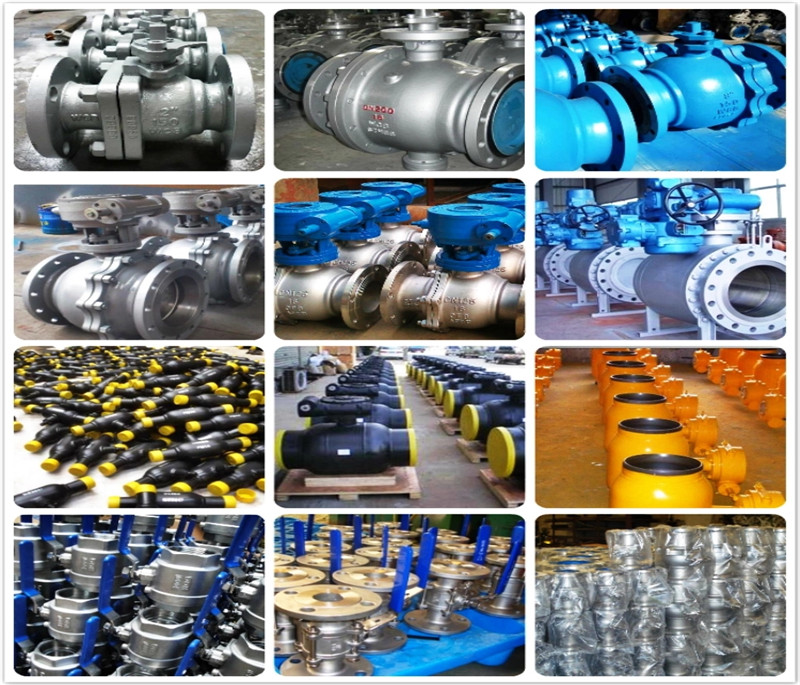

Pipefun Pipe keeps more than 2000 tons stocks at hand, we offer one stop buying and fast delivery. Full sizes and full standards products are available. We also have ISO and API 5L certificates.
Pipefun is the relaible partner for project solution and long time business relationship! Free inquiry for good price!
Hebei Pipefun Pipe and Fitting facility Co., Ltd., is established in 2000, it is a specialized enterprise professional in producing steel pipes and pipe fittings. Choosing us to be your business partner can bring you great advantages in business! There are 25 engineers and 89 skilled workers in our factory.
