Quick Details
Brand Name: Pipe fun
Size Range: DN10-DN3200
Standard: ASME, ANSI, BS, DIN, ISO, JID, GOST, etc.
Type: WN, SO, TH, BL, PL, SW, etc.
Material: carbon steel and stainless steel and alloyed material.
This Standard covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60 and in ratings Classes 75, 150, 0300, 400, 600, and 900. Flanges may be cast, forged, or plate (for blind flanges only) materials, as listed in Table 1A. Requirements and recommendations regarding bolting and gaskets are also included.
| Material | Carbon Steel | ASTM A105, LF2, CL1 / CL2 ,16MN,20# |
| Stainless Steel | ASTM A182, F304 / 304L, F316 / 316L,A182F317/317L,A182F310,F321,F347,316Ti | |
| Alloy Steel | ASTM A182 A182 F12,F11,F22,F5,F9,F91,F51,F53,F55,F60,F44,F304H,F316H,F317H,F321H,F347H,INCONEL 600,625,825,etc. | |
| Standard | ANSI B16.5 | Class 150 Flanges-Class 2500 Flanges |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar 63Bar | |
| JIS | 5K Flanges-30K Flanges | |
| EN1092-1 | 6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar | |

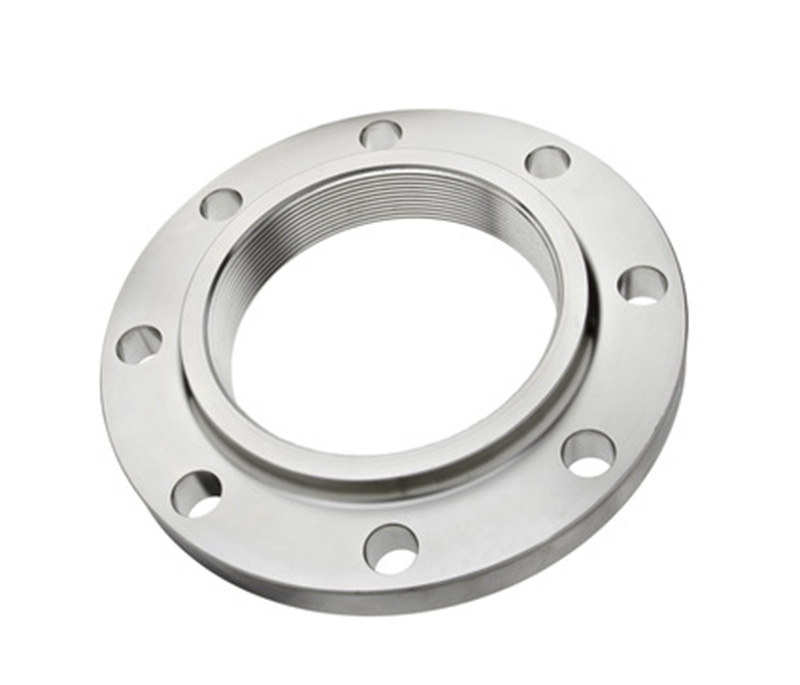

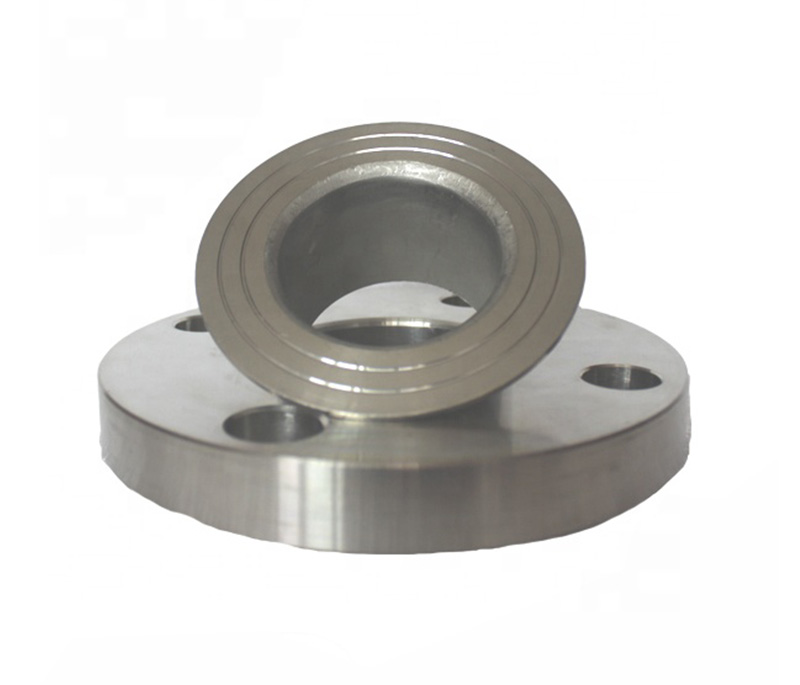

| Type | 1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket Welding Flange 8. Thread Flange /Screwed Flange 9. Lap Joint Flange | |
| Connection Type | Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc | |
| Size | 1/2"-100",SCH5S-SCH160S,XS,XXS,STD | |
| Heat Treatment | Normalizing, Annealing, Quenching Tempering | |
| Applications | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. | |
Pipefun Pipe keeps more than 2000 tons stocks at hand, we offer one stop buying and fast delivery. Full sizes and full standards products are available. We also have ISO and API 5L certificates.
Pipefun is the relaible partner for project solution and long time business relationship! Free inquiry for good price!
Display:
Hebei Pipefun Pipe and Fitting facility Co., Ltd., is established in 2000, it is a specialized enterprise professional in producing steel pipes and pipe fittings. Choosing us to be your business partner can bring you great advantages in business! There are 25 engineers and 89 skilled workers in our factory.

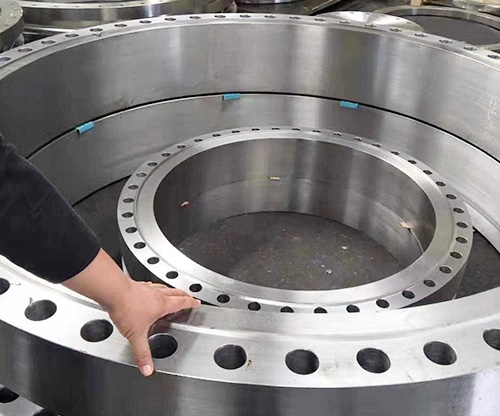

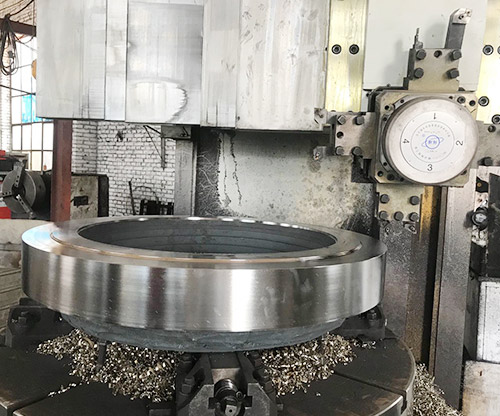

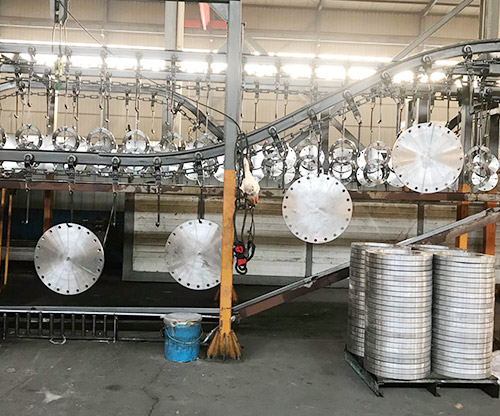

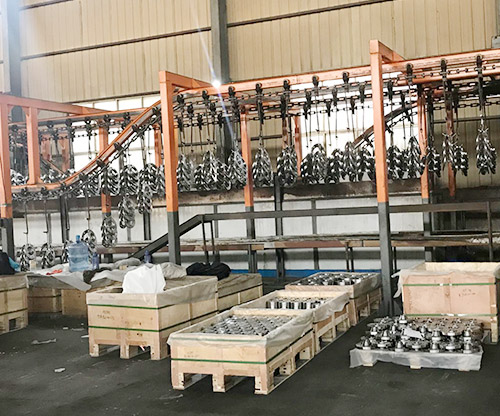

Factory Workshop
Factory Workshop
Factory Workshop
Factory Workshop
