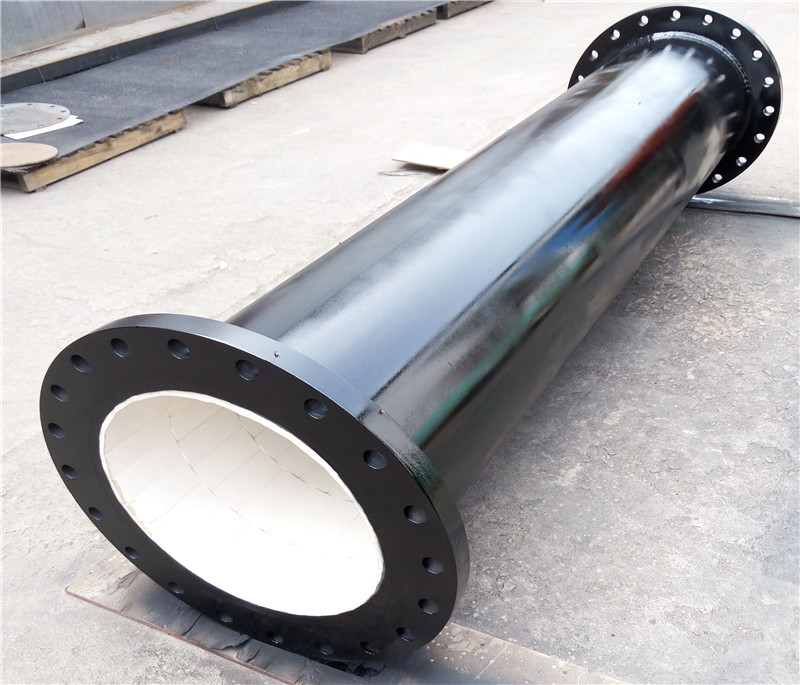

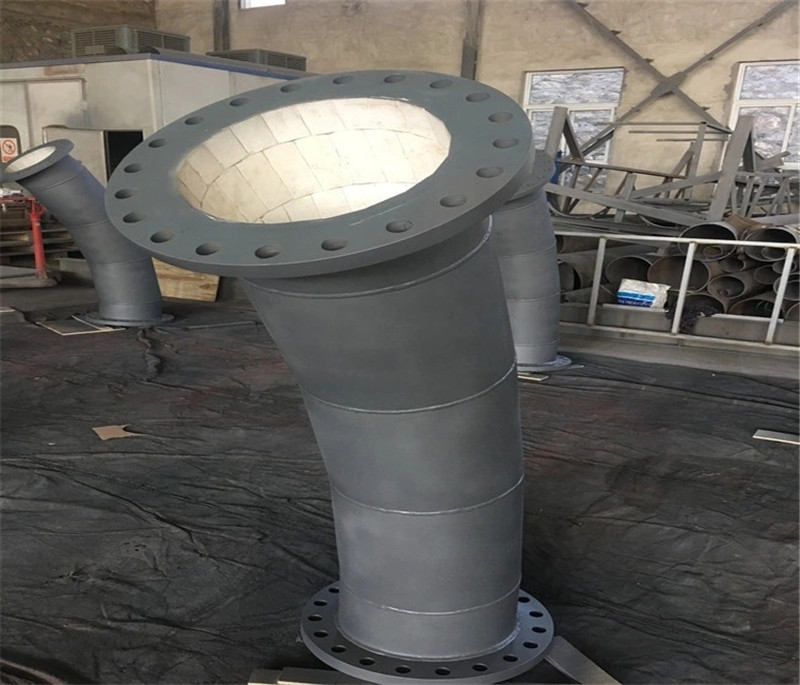

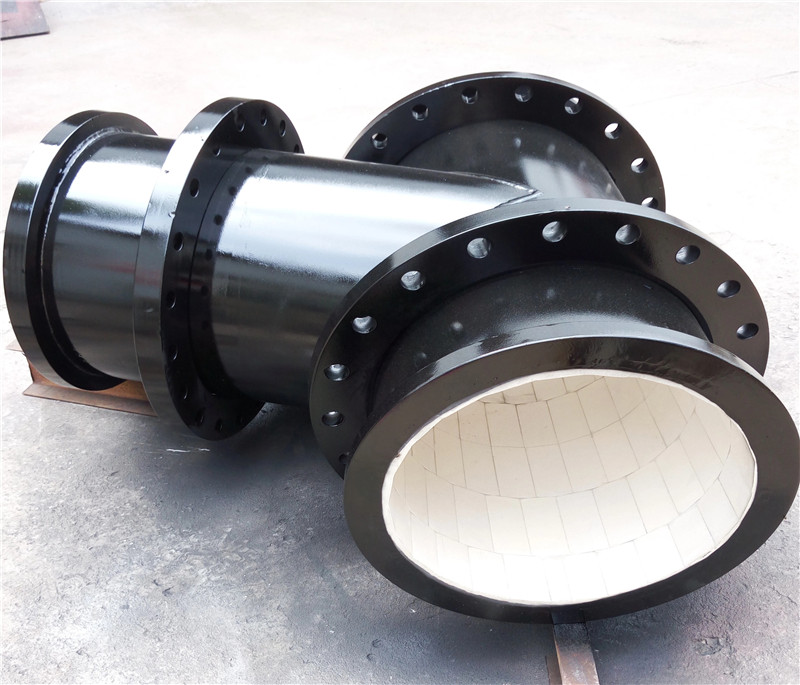

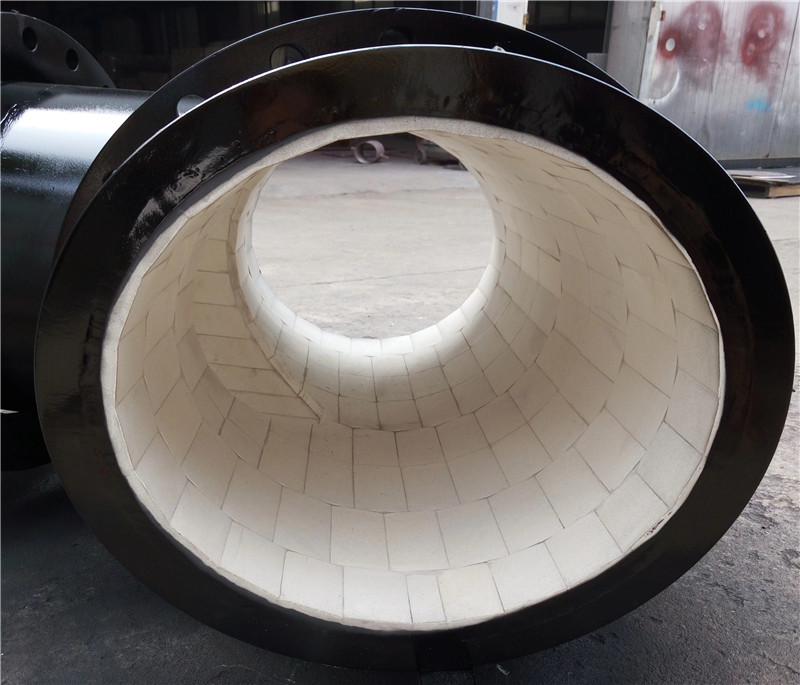

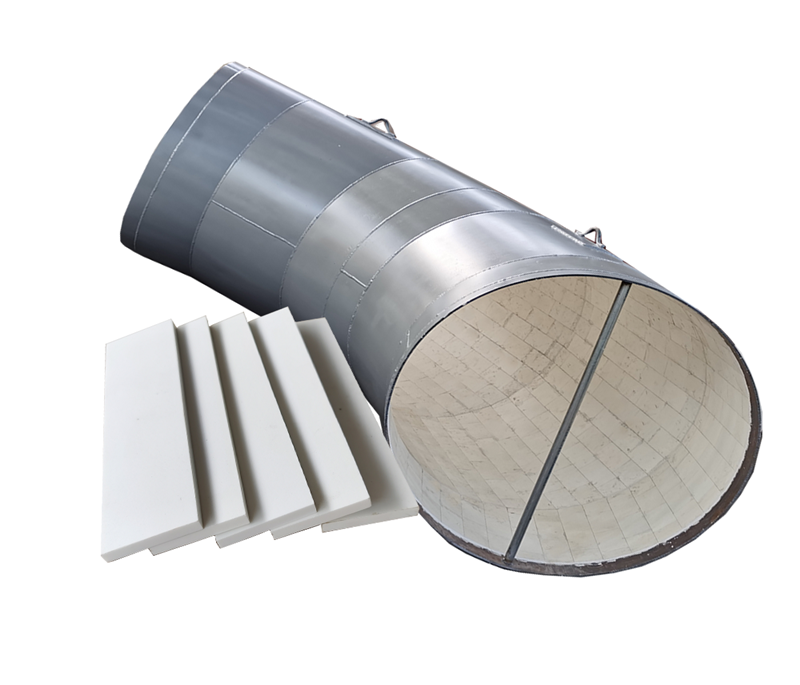

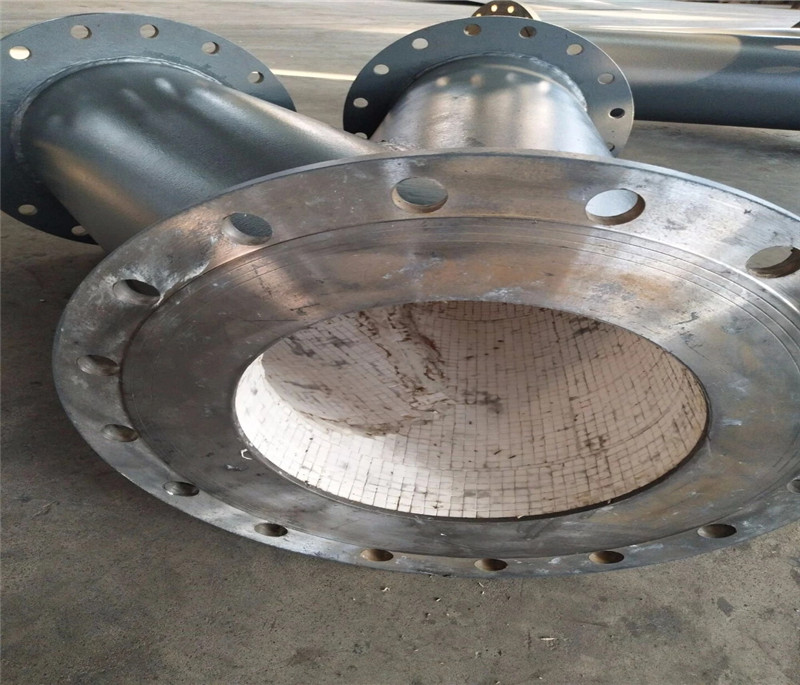

Super Wear Resistance Composite Alumina Ceramic Lined Steel Pipe

1) Standard: API Standard: API 5L, ASTM A106.ASTM A53,ASTM A135,ASTM A179,ASTM A214,ASTM A192,ASTM A226,ASTM A315,ASTM A178,ASTM A210,ASTM A333,ASTM A355,ASTM A369,ASTM A334 ASTM/ASME A312/SA312, ASTM/ASME A213/SA213, ASTM A269,ASTM 511,API5L,API5CT, GOST 9940,GOST 9941,JIS G 3459, JIS GS3463, GS3467, JIS G3448, DIN EN 10216-2006(DIN 17458) , DIN EN 10297-2006(DIN 17456) etc.

2) Steel Grade: ASTM A106 GRB,A53 GRB. API 5L GRB,API 5 CT N80,K55,A335 P11.P91,DIN ST52,ST44,ST35.8,ST37,ST42,ST45

3)Outside Diameter:1/2"-48" Or 21.3-3220mm

4) Wall Thickness: 2.11-59.54mm

5) Application: The products are widely used in fertilizer, petroleum, central-station, boiler, power station, shipping military, chemical industry, environment protection, traffic, metallurgy and mine, printing and dyeing, food industry, medical equipment, and so on.


Regular size of ceramic lined pipe



Normal Diameter

50~800

The detailed specifications

are based on factual conditions.

Thickness of Wear-resistant Liner(mm)

3~50

Thickness of Steel pipe

4~8



 Alumina ceramic Technical data sheet

Performance Index

92Series

95Series

Al2O3

>=92%

>=95%

Fe2O3

<=0.02%

<=0.02%

Compressive strength(Mpa)



>=2000



>=2250

Hardness mohs



>=9



>=9

Volume density(g/cm3)



>=3.60



>=3.70

Water absorption(%)



<=0.01



<=0.01

Color of product



white



white


Product Name: Super Wear Resistance Composite Alumina Ceramic Lined Steel Pipe

Standard: API 5L, ASTM A252, EN10219, EN10217, ISO3183, GB/T9711, SY/T5037, SY/T5040, etc.

Size: 8" - 88"

Wall Thickness: 2-60mm

Material: GR.A,GR.B,X42-80, 40Mn2

Surface: Fusion Bond Epoxy Coating, Coal Tar Epoxy, 3PE, FBE, Varnish coating, Bitumen coating, Black Oil coating etc.

MOQ: 1 ton

Certificates: API5L, ISO 9001:2008,SGS, BV,CCIC

Application:  mine well





Pipefun Pipe keeps more than 2000 tons stocks at hand, we offer one stop buying and fast delivery. Full sizes and full standards products are available. We also have ISO and API 5L certificates.

Pipefun is the relaible partner for project solution and long time business relationship! Free inquiry for good price!


Super Wear Resistance Composite Alumina Ceramic Lined Steel Pipe

Hebei Pipefun Pipe and Fitting facility Co., Ltd., is established in 2000, it is a specialized enterprise professional in producing steel pipes and pipe fittings. Choosing us to be your business partner can bring you great advantages in business! There are 25 engineers and 89 skilled workers in our factory.

Super Wear Resistance Composite Alumina Ceramic Lined Steel Pipe

Super Wear Resistance Composite Alumina Ceramic Lined Steel Pipe

Super Wear Resistance Composite Alumina Ceramic Lined Steel Pipe
